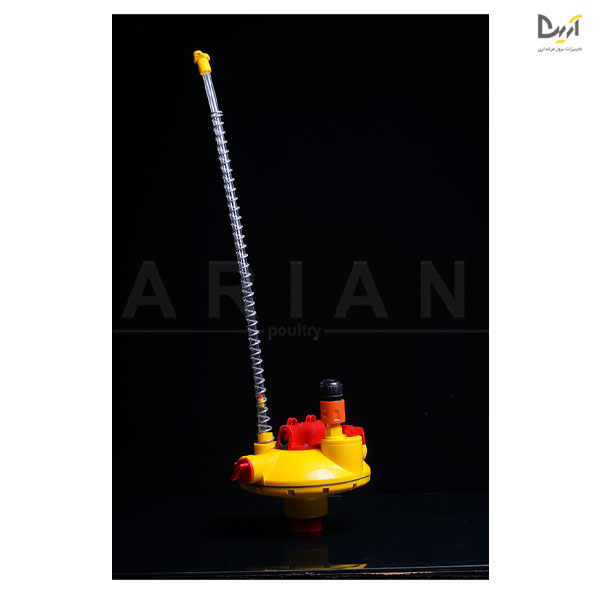

Regulator (pressure relief valve)

A pressure relief valve or regulator is a tool for regulating the water pressure in the drinking pipes. Currently, pressure relief valves are available in two forms on the market: models with a direct pressure valve and models without a direct pressure valve. This valve is of great help during washing and vaccination. High water pressure in the lines will cause water to be wasted and the bedding to be wet, and low water pressure will prevent the chickens from getting enough water. Therefore, the nipple drinking pressure relief valve should be adjusted according to the age of the flock. By turning the adjustment screw to the sides, you can increase or decrease the water pressure in the lines on the pressure relief valve water gauge.

?What parts does the regulator consist of

1. A screw to adjust the water pressure and an indicator to indicate the water level: Using these two items, you can easily adjust the water pressure and the amount of water in the lines, which will help you a lot during vaccination and when the poultry are of different ages to adjust the amount to the appropriate level.

2. The valve used for washing the line: To clean and wash the remaining objects so that they are completely removed from the lines, the line washing valve can be opened with high pressure to clean the lines well for you.

How and where to install a nipple drinker pressure relief valve

How and where to install a nipple drinker pressure relief valve depends on the length of the drinker lines. The longer the drinker lines, the more time we need for the water to reach the end of the line after passing through the pressure relief valve. This delay in reaching the end of the lines is more important than ever during vaccination so that we do not encounter the problem of uneven distribution of the vaccine to the chickens. Therefore, depending on the length of the lines, pressure relief valves can be installed in 3 ways:

For lines under 80 meters at the beginning of the line and the drain valve at the end of the line
For lines 80 to 120 meters in the middle of the line and the drain valve at the beginning and end of the line
For halls over 120 meters, the line should be divided into two equal parts. Pressure relief valves should be installed at the beginning of each line and the drain valves at the end of each line

Advantages of using a poultry pressure relief valve

Controlled water flow rate in different conditions
With completely easy installation and use
Affordable price compared to its performance
The nipple can be used at the beginning, end and middle of the line.
Regulator equipped with bypass valve to flush the drinking line and extend the life of the drinking system
With level indicator tube

The flushing (self-cleaning) capability will result in better production results, less labor, increased effectiveness of the medication and vaccination program, and longer life of the nipple drinking system.

Price and purchase of nipple drinker pressure relief valve

Because the water pressure inside the pipes is very important and if it is high, it causes the bedding to get wet and the chickens to get sick, and if it is low, it causes the chickens not to get enough water, for this reason, using a pressure relief valve in the nipple drinker system is very important and practical. You can get the highest quality pressure relief valve at the lowest price with the advice of our experts in this field. To purchase and place an order for this product, contact our contact numbers and other communication methods on the Arian Production Industries website, which is listed at the bottom of the site.
